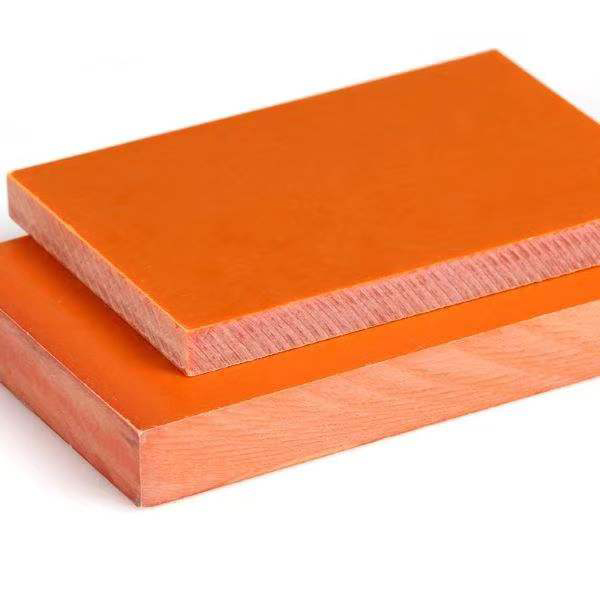

Industrial FR1 Material Sheet
With its excellent thermal and electrical characteristics, FR1 material sheet is a special material that is commonly used in various industries. It comprises of flame retardant materials which guarantee safety in cases where there might be fire breakouts. In fact, this high mechanical strength and dimensional stability is why many people prefer it as the best for use by precision components. For instance, it offers great electrical insulation properties, making it suitable for demanding electronic applications. Its low water absorption rate also guarantees stability in moist conditions.
FR1 Material Sheet Parameters:
Indicator Name | Unit | Indicator Value | |
Applicable standards | / | GB1302-77 | |
Density | g/cm³ | 1.30 – 1.45 | |
Thermal stability | Board thickness 20mm and below | ℃ | 125 |
Board thickness above 20mm | 100 | ||
Tensile Strength | MPa | 78.4 | |
Bending Strength | MPa | 98 | |
Impact Strength | KJ/M² | 12 | |
Adhesive Strength | N | 3528 | |
Parallel layer to insulation resistance | Normality | MPa | 1.0 × 1010 |
After Soaking | MPa | 1.0 × 108 | |
Vertical layer direction withstand voltage (withstand voltage for 5 minutes in variable pressure gasoline at 20±5℃) | Thickness 0.2-1 mm | KV/mm | 25 |
Thickness 1.1-2 mm | 22 | ||
Thickness 2.1-3 mm | 19 | ||
Thickness above 3 mm | 19 | ||
Temperature Index | ℃ | 120 |
FR1 Material Sheet Features:
FR1 PCB Material is a cost-effective PCB substrate material that offers good mechanical strength, electrical insulation, and thermal stability. Its unique properties make it suitable for a wide range of applications in the electronics industry.
1. Mechanical Properties: FR1 Material Sheet exhibits good mechanical strength and rigidity. It can withstand a certain level of stress and impact, ensuring the stability and durability of the PCB.
2. Electrical Properties: FR1 Material Sheet has excellent electrical insulation properties. It can effectively isolate different components and circuits on the PCB, preventing electrical interference and ensuring the reliability of the circuit.
3. Thermal Properties: FR1 Material Sheet has good thermal stability. It can operate in a wide temperature range without significant changes in its physical or electrical properties. This makes it suitable for applications in different environments.
FR1 Material Sheet Application:
FR1 Material Sheet is a flame-retardant, high-quality insulation material that offers excellent electrical and thermal properties. It is typically composed of epoxy resin and fiberglass cloth, resulting in a robust yet lightweight material.
1. Applications in Electronics:
FR1 Material Sheets are commonly used as base materials for PCBs (Printed Circuit Boards) due to their high resistance to electrical currents and good thermal stability. They are also suitable for making electrical components such as spacers, insulation barriers, and thermal shields.
2. Telecommunication and Data Centers:
FR1 Material Sheets are utilized in the telecommunication industry to create insulated components that require high electrical isolation and thermal management. In data centers, FR1 sheets are used in server racks and other equipment to provide fire protection and insulation.
3. Industrial Applications:
FR1 Material Sheets find use in various industrial settings where insulation, fire retardancy, and electrical insulation are crucial.
They are often used in motor controls, transformers, and other electrical equipment.
FR1 Material Sheet FAQs:
What is FR1 Material Sheet?
FR1 Material Sheet is a type of high-pressure laminate made from phenolic resin-impregnated paper. It offers excellent electrical insulation properties and is widely used in electrical and electronic applications.
What are the primary applications of FR1 Material Sheet?
These sheets are commonly used in the manufacture of printed circuit boards (PCBs), electrical insulation components, and various electronic devices due to their superior electrical insulating properties.
What are the key properties of FR1 Material Sheet?
Fr1 sheets are known for their excellent electrical insulation, high mechanical strength, good thermal resistance, and dimensional stability. They are also flame retardant and moisture resistant.
How do FR1 Material Sheet compare to other laminates?
Fr1 sheets offer superior electrical insulation and are more flame retardant than many other laminates. They are also highly durable and maintain performance under varying environmental conditions, making them ideal for demanding applications.
Can you provide custom sizes and thicknesses for FR1 Material Sheet?
Yes, we offer customization of sizes and thicknesses to meet the specific requirements of our clients. Please contact us with your specifications for a tailored solution.
Are FR1 Material Sheet environmentally friendly?
Fr1 sheets are manufactured in compliance with environmental regulations and standards. We ensure our production processes minimize environmental impact and our products are safe for use in various applications.
How do you ensure the quality of your FR1 Material Sheet?
We implement stringent quality control measures at every stage of production. Our sheets undergo rigorous testing for electrical, mechanical, and thermal properties to ensure they meet industry standards.
Do you offer technical support for the use of FR1 Material Sheet?
Yes, we provide comprehensive technical support to assist our clients in selecting the right product and ensuring optimal performance in their applications. Our team of experts is available to answer any questions and provide guidance.
