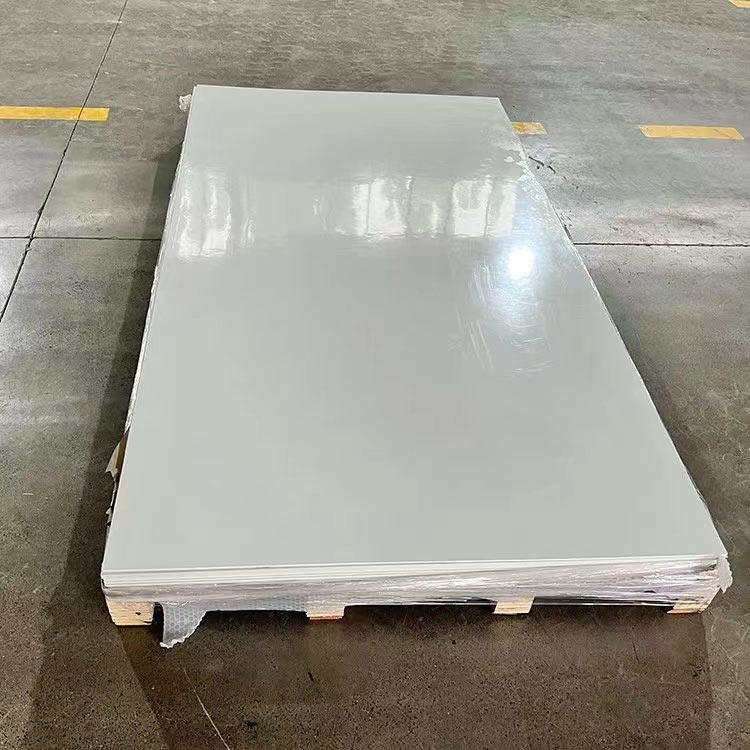

Introduction:SMC, or Sheet Molding Compound, is a composite material comprising long carbon or glass fibers dispersed in a resin bath of vinyl ester, polyester, or epoxy. This combination results in a robust final product known for its strength. Typically sold in rolls, SMC can be cut into smaller pieces called "charges" for various applications. Production involves integrating the fibers and resin by applying resin paste to a film, adding cut fibers, and compressing the mixture between two films. After storage to achieve the desired texture, compression molding applies heat and pressure to cure the SMC, yielding the finished product.
Product Description
SMC, or Sheet Molding Compound, is a composite material comprising long carbon or glass fibers dispersed in a resin bath of vinyl ester, polyester, or epoxy. This combination results in a robust final product known for its strength. Typically sold in rolls, SMC can be cut into smaller pieces called "charges" for various applications. Production involves integrating the fibers and resin by applying resin paste to a film, adding cut fibers, and compressing the mixture between two films. After storage to achieve the desired texture, compression molding applies heat and pressure to cure the SMC, yielding the finished product.
SMC Sheet Molding Compound Parameters:
| Indicator name | unit | Index value | ||
| 4341 SMC-1 | 4343 SMC-2 | 4331 SMC-3 | ||
| Density | g/cm3 | 1.75～1.95 | ||
| water absorbency | mg | ≤20 | ||
| Molding Shrinkage | % | ≤0.15 | ≤0.30 | |
| Heat distortion temperature (method A) | ℃ | ≥240 | ≥220 | |
| Impact strength (simple bracket, no notch) | KJ/m2 | 290 | 260 | 245 |
| Bending strength | MPa | 2170 | ≥150 | ≥135 |
| Insulation resistance: normal | Q | ≥1.0×1013 | 1.0×1012 | |
| After soaking in water for 24 hours | ≥1.0×1012 | |||
| Electrical strength (in 90°C transformer oil) | MV/m | ≥12.0 | ≥10.0 | |
| Dielectric loss factor (1MHz) | S0.015 | |||
| Relative dielectric constant (1MHz) | ≤4.8 | |||
| Arc resistant | S | 2180 | ≥150 | |
| Tracking resistance index (PTl) | V | 2600 | ||
| Flammability | level | FVO | ||
| Long term heat resistance temperature index | 155 | 130 | ||
SMC Sheet Molding Compound Features:
The sheet moulding composite possesses these characteristics, making it a versatile material that is commonly used in several industries such as automotive, aerospace, electrical and construction. Below are key features of Sheet Molding Compound (SMC) summarized in bullet points:
1. A Composite Material: SMC is a mixture of resins, reinforcements (most times glass fibers) and fillers.
2. Workability: It has high workability where complex shapes can be made from it which makes it applicable for a wide range of uses.
3. High Strength to Weight Ratio: SMC has great strength to weight ratio that provides structural integrity whilst being lightweight.
4. Resistance to Corrosion: SMC inherently withstands corrosion hence its suitability for outdoor or harsh environment applications.
5. Stays Dimensionally stable: It retains its shape and size under different temperature and humidity conditions.
6. Excellent Surface Finish: Normally smc surfaces have fine finish, thus reducing the need for subsequent finishing operations.
7. Chemical Resistant: It has resistance towards many types of chemicals; this feature enhances its applicability in diverse industrial fields.
8. Electrical Insulation Properties : SMC is an outstanding electrical insulator therefore best suited for electrical enclosures and components.
9. Fire Retardancy: Different formulations of SMC can be made with varying levels of flame resistance to meet certain legal requirements.
SMC Sheet Molding Compound Application:
1. The automotive industry: SMC is widely used in the automobile sector to manufacture different parts such as car bodies, bumpers, bonnets, spoilers, and structural reinforcements. Its lightweight characteristic, high strength and corrosion resistance makes it a perfect material for improving fuel economy and vehicle performance.
2. Electricity and electronics: SMC is used in electrical enclosures, insulating covers and housings for electronic components due to its excellent dielectric properties; thermal resistance; flame retardancy. It offers protection against electrical dangers as well as ensures safe working of electrical apparatus.
3. Construction and Infrastructure: For this reason, with regards to its longevity, weather friendly nature as well as design ability it can be applied both indoors or outdoors in residential-commercial-industrial buildings The durability of the SMC makes it suitable for use in the manufacture of prefabricated building panels, doors & window frames, architectural components etc.
4. Renewable energy: In renewable energy sector manufacturing of the following parts like wind turbine blades, solar panels among other things are done using SMC.The lightweight property and its high durability have helped in optimising performance and efficiency of renewable energy systems.
5.Transportation And Aerospace: So that interiors could be built out of such materials or seat structures which are lighter but stronger than steel or luggage compartments that are resistant against fire accidents.Such characteristics make them dependable when it comes to enhancing the safety and performance of vehicles or planes since they meet hard rules.
6.Marine And Recreational Vehicles: Boat hulls are manufactured from SMC material used here because it has good toughness even under wet conditions (water), exposure to chemicals (such as acids) or continuous exposure of UV light.It is alternatively utilized on recreational vehicles; camper shells as well as outdoor recreational equipment on account of weight reduction advantage coupled with increased endurance.
7. Medical Equipment production such medical device housings; equipment enclosures including patient care products among others.The biocompatibility, sterilizability and dimensional stability of SMC are important in ensuring the dependability as well as the safety of medical equipment and devices.
SMC Sheet Molding Compound FAQs:
What is SMC?
SMC, or Sheet Molding Compound, is a composite material typically used in manufacturing processes. It consists of a thermosetting resin, reinforcing fibers, and various additives.
What are the advantages of using SMC over other materials?
SMC offers numerous advantages including high strength-to-weight ratio, corrosion resistance, dimensional stability, and excellent surface finish. It is also highly moldable and suitable for complex shapes.
What industries commonly use SMC products?
SMC products find applications in diverse industries such as automotive, electrical, construction, aerospace, and telecommunications due to their versatility and performance characteristics.
Can SMC be customized for specific applications?
Yes, SMC can be tailored to meet specific application requirements by adjusting the resin formulation, fiber content, and additives, ensuring optimal performance and functionality.
Are your SMC products environmentally friendly?
Yes, our SMC products are environmentally friendly as they are recyclable and emit low volatile organic compounds (VOCs) during manufacturing, contributing to sustainability efforts.
Do you offer customization options for color and finish?
Yes, we offer customization options for color and finish to meet the aesthetic and branding requirements of our customers, providing flexibility in design and product differentiation.
What are the temperature and chemical resistance properties of your SMC products?
Our SMC products exhibit excellent temperature and chemical resistance properties, making them suitable for demanding environments and applications where exposure to extreme conditions is common.
What is your approach to quality control and assurance during manufacturing?
Our manufacturing process incorporates rigorous quality control and assurance measures at every stage, including raw material inspection, production monitoring, and final product testing, to ensure adherence to quality standards and customer satisfaction.
