Architecture And Interior Decoration Non Flame Retardant Composite
Please click the button below to contact us.

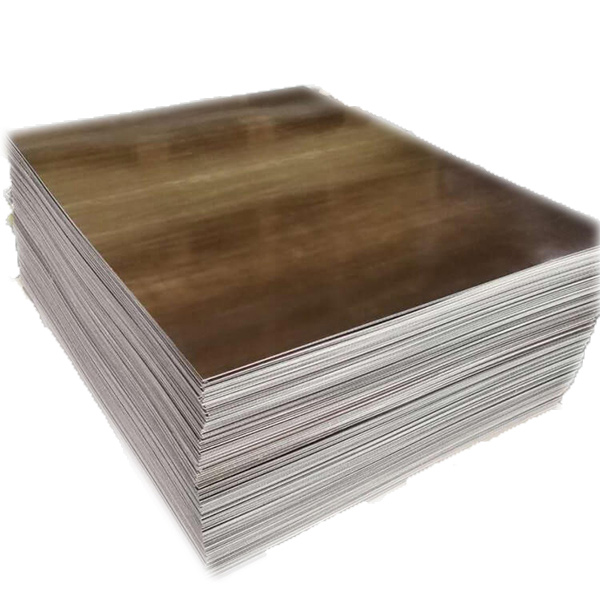

Introduction:This G9 Glass Melamine Laminate for Versatile Applications is made of alkali-free glass cloth impregnated with melamine formaldehyde resin by drying and hot pressing. It has good arc resistance and certain dielectric properties and flame retardant properties.
Product Description
G9 glass melamine laminate is a extremely good composite cloth that is frequently used in a number industries for its superb properties. This laminate is made up of layers of glass material impregnated with melamine resin, which is then cured beneath excessive strain and temperature to create a robust and long lasting material.
Parameters:
| Indicator name | Unit | Indicator Value | |
| Density | g/cm³ | 1.8–2.0 | |
| Water absorption | % | ≤ 3.0 | |
| Vertical layer bending strength | MPa | ≥ 200 | |
| Parallel layer impact strength (simple beam method notch) | K J/m² | ≥ 25 | |
| Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/mm | ≥ 7.0 |
| 2mm | ≥ 5.4 | ||
| 3mm | ≥ 5.0 | ||
| Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV | ≥ 15 | |
| Insulation resistance | Normality | Ω | ≥ 1.0 × 1012 |
| After immersed in water for 24h | ≥ 1.0 × 108 | ||
| Flammability (UL-94) | Level | – | |
Features:
- High energy and rigidity: Due to the presence of glass fiber bolstered materials, G9 glass melamine laminated composite substances have excessive electricity and rigidity, and can face up to giant mechanical stresses.
- Wear resistant and scratch resistant: The floor has been mainly dealt with to have exceptional put on resistance and scratch resistance, appropriate for excessive drift areas and normal use scenarios.
- Chemical corrosion resistance: It has properly resistance to many frequent chemical substances such as acids, bases, and solvents, and is appropriate for environments that require corrosion resistance.
- Good dimensional stability: It can keep secure dimensions and is now not without difficulty deformed even beneath temperature and humidity changes.
- Easy to technique and install: It can be processed thru a range of techniques such as cutting, drilling, and polishing, making it handy to installation and maintain.
- Beautiful and diverse: The floor can be handled with more than a few colorings and textures, presenting wealthy graph picks to meet distinct aesthetic needs.
- Cost effectiveness: Compared to different high-performance materials, G9 glass melamine laminated composite substances have decrease prices and greater cost-effectiveness.
- Non flame retardant properties: It ought to be mentioned that this cloth is non flame retardant, so extra fire-resistant therapy or choice of different flame retardant substances might also be fundamental in conditions the place fireplace resistance is required.
Applications:
- Architecture and Interior Decoration: Walls and Ceilings: Decorative panels used for indoor and out of doors partitions and ceilings, presenting a lovely and long lasting surface.
- Partition and Screen: Used as partition and display screen substances in offices, hotels, or industrial spaces.
- Furniture manufacturing: computing device and countertop: used for making workplace desks, eating tables, kitchen countertops, etc., with the traits of put on resistance and scratch resistance.
- Cabinets and wardrobes: As cupboard door panels and cloth cabinet linings, they furnish a sturdy and handy to easy surface.
- Industrial applications: Control panels and instrument enclosures: used to manufacture enclosures for industrial manage panels, instruments, and equipment, offering true mechanical homes and chemical stability.
- Electrical equipment: used for the inside shape and exterior protecting of electrical gear such as cupboards and distribution boxes.
- Transportation: Vehicle Interior: Used for indoors ornament of automobiles such as cars, trains, airplanes, etc., such as seat backrests, aspect panels, etc.
- Ship interior: Used for indoors ornament of yachts and industrial vessels, offering water-proof and corrosion-resistant surfaces.
- Outdoor facilities: Billboards and signage: used for outside billboard and signage systems, with right climate resistance and UV resistance.
- Public facilities: Surface substances for public services such as park benches and bus stops.
FAQ:
What is G9 Glass Melamine Laminate?
G9 Glass Melamine Laminate is a premium surfacing material renowned for its durability, versatility, and aesthetic appeal. It's crafted by fusing multiple layers of resin-impregnated decorative paper onto layers of kraft paper core, under high heat and pressure, resulting in a robust and visually stunning laminate.
What are the key features of G9 Glass Melamine Laminate?
G9 Glass Melamine Laminate offers exceptional scratch resistance, impact strength, and heat resistance. It is also resistant to stains, chemicals, and moisture, making it ideal for various applications in both residential and commercial settings.
How does G9 Glass Melamine Laminate compare to other surfacing materials?
G9 Glass Melamine Laminate stands out for its unparalleled durability and design versatility. Unlike some traditional materials, it maintains its integrity even in high-traffic areas and challenging environments, while offering an extensive range of colors, patterns, and textures to suit diverse design preferences.
What applications is G9 Glass Melamine Laminate suitable for?
G9 Glass Melamine Laminate is suitable for a wide range of applications, including but not limited to countertops, cabinetry, furniture, wall panels, and partitions in residential, commercial, and institutional settings.
Can G9 Glass Melamine Laminate be customized to specific design requirements?
Yes, G9 Glass Melamine Laminate can be customized to meet specific design requirements, including color matching, texture selection, and sizing options, providing flexibility and creative freedom for tailored solutions.
What maintenance is required for G9 Glass Melamine Laminate?
G9 Glass Melamine Laminate requires minimal maintenance. Regular cleaning with mild detergent and water is usually sufficient to keep it looking pristine. Avoid harsh chemicals and abrasive cleaners to preserve its finish and longevity.
How does G9 Glass Melamine Laminate perform in terms of fire safety?
G9 Glass Melamine Laminate meets stringent fire safety standards, offering excellent fire resistance properties. It is engineered to retard the spread of flames and minimize smoke emissions, enhancing overall safety in various applications.
