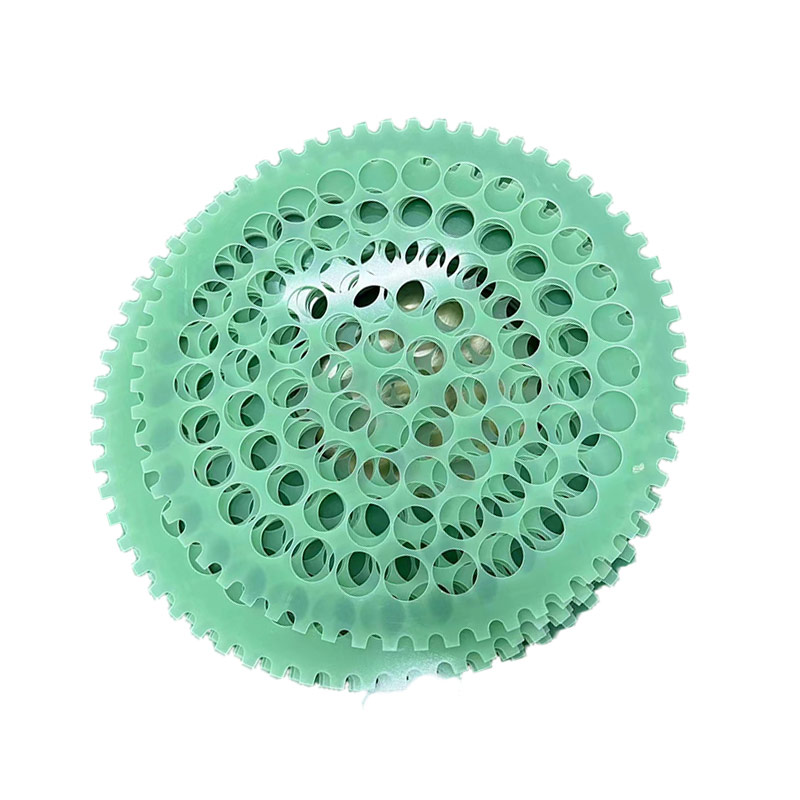

G10 Non-Flame Retardant Composite

G10 Non-Flame Retardant Composite

Please click the button below to contact us.

Introduction:A high pressure laminate material composed of glass cloth impregnated with epoxy resin binder is G10 glass epoxy sheet. It is famous for its toughness, electrical insulation properties, and resistance to chemicals, moisture and heat.

Product Description

non-flame retardant composite materials are designed to provide structural strength and durability without the need for added fire-retardant chemicals. These materials are often used in applications where fire resistance is not a primary concern, but where other properties such as weight savings, corrosion resistance, or cost-effectiveness are more important.
One of the key benefits of using non-flame retardant composites is their lightweight nature. By using materials such as carbon fiber or fiberglass in combination with a resin matrix, manufacturers can create strong and durable components that are significantly lighter than traditional metal alternatives. This can result in lower fuel consumption in applications such as aerospace or automotive industries, as well as improved energy efficiency in other applications.
Non-flame retardant composites also offer excellent corrosion resistance, making them ideal for use in harsh environments where exposure to water, chemicals, or other corrosive agents is a concern. This can extend the lifespan of components and reduce maintenance costs over time.
It is important to note that while non-flame retardant composites do not contain added fire-retardant chemicals, they may still exhibit some level of fire resistance based on the materials used and the design of the component. Manufacturers can work with engineers and regulatory bodies to ensure that their products meet all necessary safety standards and requirements for their specific application.


G10 Non-flame Retardant Composite

G10 Glass Epoxy Sheet Parameters:

Indicator NameUnitIndicator Value
Densityg/cm³1.8 – 2.0
Water absorption%≤ 0.5
Vertical layer bending strengthMPa≥ 340
Vertical layer compression strengthMPa≥ 350
Parallel layer impact strength (simple beam method notch)K J/m²≥ 37
Parallel layer shear strengthMPa≥ 34
Tensile strengthMPa≥ 300
Vertical layer direction electric strength (90 ℃± 2 ℃ in oil)1mmKV/mm≥ 14.2
2mm≥ 11.8
3mm≥ 10.2
Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil)KV≥ 40
Dielectric loss factor (50 Hz)≤ 0.04
Insulation resistanceNormality≥ 5.0 × 1012
After immersed in water for 24h≥ 5.0 × 1010
Flammability (UL-94)Level


G10 Glass Epoxy Sheet Features:

  • High temperature resistance: Some fire-resistant composite materials, such as SVT fire-resistant fabrics, can withstand high temperature particle bombardment up to 1400 degrees, significantly improving the safety of composite materials.
  • Structural integrity: In high-temperature environments, fire-resistant composite materials can maintain structural integrity and fire resistance, greatly improving safety compared to traditional composite materials.
  • Enhance structural toughness and strength: SVT fireproof fabric can improve structural toughness and strength, and enhance material durability.
  • Outstanding extension and bending properties: Fire resistant composite materials have excellent extension and bending properties, making them more flexible in various applications.
  • Lightweight material thickness: SVT fireproof fabric has a lightweight material thickness that can be customized and easily integrated into various structures.
  • More flexible plasticity: Fireproof composite materials have higher plasticity and can be customized in shape according to needs.
  • Suitable for various epoxy resin construction systems: SVT fireproof fabric is suitable for various epoxy resin construction systems, improving the flexibility and adaptability of construction.
  • Environmental protection and renewability: Certain fire-resistant composite materials, such as bio based materials, are environmentally friendly and renewable, meeting the requirements of sustainable development.
  • Improving thermal stability and fire resistance: By adding inorganic chemicals such as sodium silicate, boric acid, ammonium phosphate, and ammonium borate, the thermal stability and fire resistance of wood can be significantly improved.
  • Reduce the generation of toxic gases: Some fire-resistant composite materials can suppress smoke production and promote carbon residue, reducing the emission of toxic gases in fires.
  • Enhanced formation of carbon layer: Some phosphorus nitrogen (P-N) composite flame retardant treatments can promote the formation of carbon layer and improve the fire resistance of materials.



G10 Glass Epoxy Sheet Applications:

  • In the aviation field, composite materials are widely used, and the use of fire-resistant composite materials can improve the fire resistance of aircraft materials and reduce fire risks.
  • Construction industry: In the construction industry, fire-resistant composite materials can be used to improve the fire safety of buildings, especially in high-rise buildings and public facilities.
  • Automotive industry: In the automotive field, the application of composite materials is becoming increasingly widespread. The use of fire-resistant composite materials can improve the flame retardant performance of vehicles and protect passenger safety.
  • Electronic devices: In the field of electronic devices, fire-resistant composite materials can be used to manufacture circuit boards and other electronic components to prevent overheating and fire.
  • Wood protection: Fireproof composite materials can be used for flame retardant treatment of wood, improving its fire resistance and reducing the risk of fire accidents.
  • Environmentally friendly materials: The application of eco-friendly polymer nanocomposite coatings as the next generation of fire-resistant and flame-retardant agents in building materials not only enhances fire resistance, but also helps achieve more sustainable and environmentally friendly methods.
  • Nanomaterial applications: Nanomaterials have great potential in flame retardant technology, which can increase the interfacial area of composite materials, improve the dispersion of flame retardants, and enhance the flame retardant effect of materials.
  • Intelligent materials: The emergence of intelligent flame retardant materials enables flame retardant performance to respond more accurately to changes in the external environment, achieving more efficient and controllable fire prevention effects.
  • Biobased materials: Biocomposite materials made from renewable polymers and natural fibers, which have attracted attention due to their environmental characteristics. These materials combine nanoparticles such as graphene and layered double hydroxides to provide enhanced fire resistance and comply with green chemistry principles.



G10 Glass Epoxy Sheet FAQ:

What is G10 Glass Epoxy Sheet and its applications?

G10 Glass Epoxy Sheet is a high-pressure fiberglass laminate known for its excellent electrical insulating properties and mechanical strength.   It's commonly used in aerospace, electronics, and marine industries for insulating components, circuit boards, and structural applications.


What are the key features of G10 Glass Epoxy Sheet?

G10 Glass Epoxy Sheet offers outstanding mechanical strength, dimensional stability, flame resistance, and low moisture absorption.   It's also resistant to chemicals and has excellent dielectric properties.


Is G10 Glass Epoxy Sheet compliant with industry standards and certifications?

Yes, our G10 Glass Epoxy Sheet meets or exceeds industry standards and certifications, ensuring reliability and performance consistency in diverse applications.


Can G10 Glass Epoxy Sheet be machined or fabricated?

Yes, G10 Glass Epoxy Sheet can be easily machined, drilled, milled, and fabricated into custom shapes and sizes using conventional tools and techniques.


Does G10 Glass Epoxy Sheet offer good electrical insulation properties?

Absolutely, G10 Glass Epoxy Sheet provides exceptional electrical insulation, making it ideal for applications where high voltage and electrical insulation are crucial.


How does G10 Glass Epoxy Sheet resist chemical exposure?

G10 Glass Epoxy Sheet demonstrates excellent resistance to a wide range of chemicals, including acids, bases, solvents, and oils, ensuring long-term performance in harsh chemical environments.
