Introduction:A high pressure laminate material composed of glass cloth impregnated with epoxy resin binder is G10 glass epoxy sheet. It is famous for its toughness, electrical insulation properties, and resistance to chemicals, moisture and heat.
Product Description
A high pressure laminate material composed of glass cloth impregnated with epoxy resin binder is G10 glass epoxy sheet. It is famous for its toughness, electrical insulation properties, and resistance to chemicals, moisture and heat. In different applications that require dependable electrical insulation and mechanical stability like electrical insulators, printed circuit boards (PCB), aerospace components and marine equipment, G10 is the best choice. Its flexibility and strength make it the number one choice in industries which require high performance and dependability.
G10 Glass Epoxy Sheet Parameters:
| Indicator Name | Unit | Indicator Value | |
| Density | g/cm³ | 1.8 – 2.0 | |
| Water absorption | % | ≤ 0.5 | |
| Vertical layer bending strength | MPa | ≥ 340 | |
| Vertical layer compression strength | MPa | ≥ 350 | |
| Parallel layer impact strength (simple beam method notch) | K J/m² | ≥ 37 | |
| Parallel layer shear strength | MPa | ≥ 34 | |
| Tensile strength | MPa | ≥ 300 | |
| Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/mm | ≥ 14.2 |
| 2mm | ≥ 11.8 | ||
| 3mm | ≥ 10.2 | ||
| Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV | ≥ 40 | |
| Dielectric loss factor (50 Hz) | – | ≤ 0.04 | |
| Insulation resistance | Normality | Ω | ≥ 5.0 × 1012 |
| After immersed in water for 24h | ≥ 5.0 × 1010 | ||
| Flammability (UL-94) | Level | – | |
G10 Glass Epoxy Sheet Features:
1. High machanical.
2. Good heat resistance and moisture resistance.
3. Good machinability.
G10 Glass Epoxy Sheet Applications:
It is widely used as structural parts in motors and electrical equipment, including various switches, electrical insulation, FPC reinforcement boards, carbon film printed circuit boards, computer drilling pads, mold fixtures, etc. (PCB testing Frame); and can be used in humid environments and transformer oil.
G10 Glass Epoxy Sheet FAQ:
What is G10 Glass Epoxy Sheet and its applications?
G10 Glass Epoxy Sheet is a high-pressure fiberglass laminate known for its excellent electrical insulating properties and mechanical strength. It's commonly used in aerospace, electronics, and marine industries for insulating components, circuit boards, and structural applications.
What are the key features of G10 Glass Epoxy Sheet?
G10 Glass Epoxy Sheet offers outstanding mechanical strength, dimensional stability, flame resistance, and low moisture absorption. It's also resistant to chemicals and has excellent dielectric properties.
Is G10 Glass Epoxy Sheet compliant with industry standards and certifications?
Yes, our G10 Glass Epoxy Sheet meets or exceeds industry standards and certifications, ensuring reliability and performance consistency in diverse applications.
Can G10 Glass Epoxy Sheet be machined or fabricated?

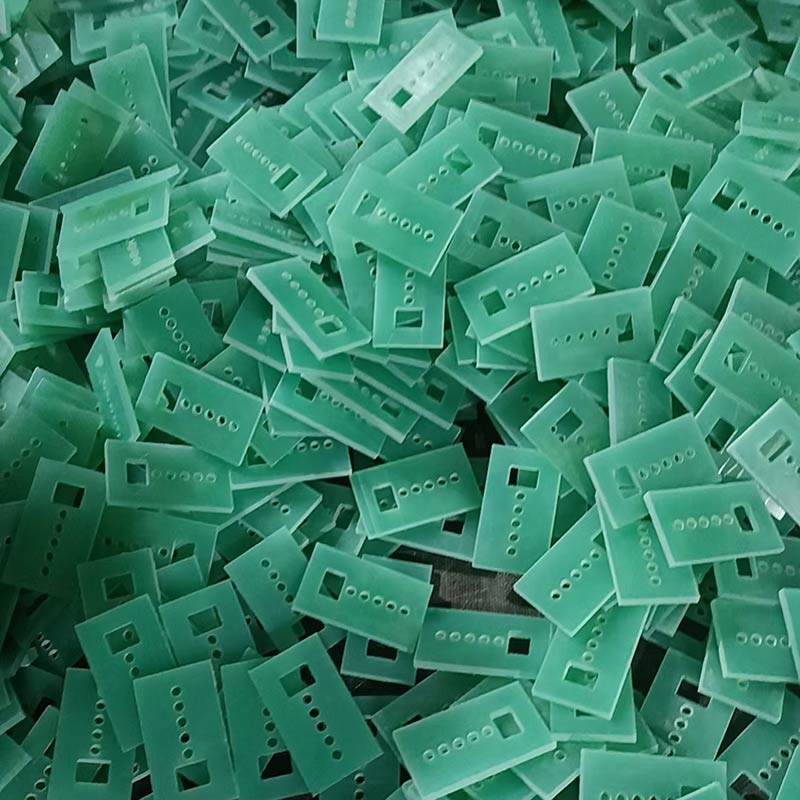

Yes, G10 Glass Epoxy Sheet can be easily machined, drilled, milled, and fabricated into custom shapes and sizes using conventional tools and techniques.
Does G10 Glass Epoxy Sheet offer good electrical insulation properties?
Absolutely, G10 Glass Epoxy Sheet provides exceptional electrical insulation, making it ideal for applications where high voltage and electrical insulation are crucial.
How does G10 Glass Epoxy Sheet resist chemical exposure?
G10 Glass Epoxy Sheet demonstrates excellent resistance to a wide range of chemicals, including acids, bases, solvents, and oils, ensuring long-term performance in harsh chemical environments.
